BALL VALVE

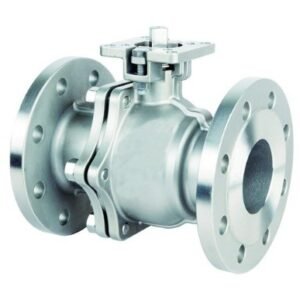

  • Floating Ball Valve
  • 2 Piece Cast Steel
  • 2 Piece forged Steel
  • 3 Piece forged Steel

Main Parameter Specification

  • Design and Manufacture: API 6D, ASME B16.34 (BS5351), API 608, MSS-SP-72
  • Face to Face Dimension: ASME B16.10, API 6D
  • Flange Connection Dimension: ASME B 16.5
  • BW Connection Dimension: ASME B16.25
  • Test and Inspection: API 598, API 6D
  • Fire-Safe Design: API 607/6FA
  • Anti-Static Design & Anti Blow-Out Stem

Product Range

  • Body material: carbon steel, stainless steel, alloy steel
  • Full bore and reduced bore design
  • Nominal diameter: 1/2″ – 10″
  • End Connection: RF, RTJ, BW
  • Pressure range: Class150 – 600
  • Working temperature: -46℃~+200℃
  • Operation: Handle, Gear, actuated, etc.
  • Trunnion mounted Ball Valve
  • Fully welded
  • Side Entry
  • Top Entry

    • Features:

    •     Anti-fire safe design: API 6FA, API607

    • Anti-static device
    • Anti-blow out design
    • Free leakage of body Sealed construction
    • Double block & bleed (DBB)
    • Emergency sealing
    • Automatic body cavity relief
    • The valve structure can be 2 pieces or 3 pieces.

  • Main Parameter Specification

    • Size: 2″ to 48″
    • Pressure: ANSI Class 150 to ANSI Class 1500
    • Material: WCB, St. St., LCB, WCC, CF8, CF8M, CF3, CF3M, A890 4A etc.
    • End Connection: Flange ASME B16.5/B16.47
    • Fire safe Test: API 607/API 6FA
    • Operation Type: Manual, electrical, pneumatic/hydraulic.
