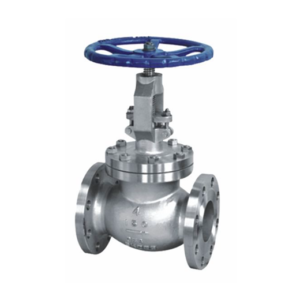

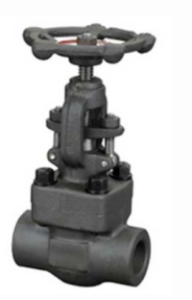

GLOBE VALVE

Globe valves are supplied with all material types to fulfill all the different combinations of service fluid, design pressure and temperature. Valves can be supplied either forged or casted based on customer specifications.

Features:

OS&Y, Rising Stem, Bolted Bonnet

Forged Steel & Cast Steel

Size: 1/2″ – 48″

Rating: ANSI 150 to 2500

Body Materials: Carbon Steels, Stainless Steel, Duplex SS, etc.

Design: API 602 / ANSI B16.34, BS 1873

Connections: Flanged, Screwed, Butt Weld, Socket weld.

Inspection & test: API 598

Types: Straight Pattern, Y-Pattern, Cage Guided
